Verify Webhook Signatures (HMAC)

Every webhook delivery from VGraple CRM carries two HMAC-SHA256 signatures computed with your endpoint's own signing secret: X-Webhook-Signature, which also binds the time of sending so an old delivery captured in transit cannot be replayed, and the original X-Signature-256 over the body alone. Verifying one of them on your side is the only way to know a payload genuinely came from VGraple CRM rather than from anyone who happened to guess your receiving URL. This walkthrough covers the exact check in three languages and the mistakes that most commonly break it.

Before you start

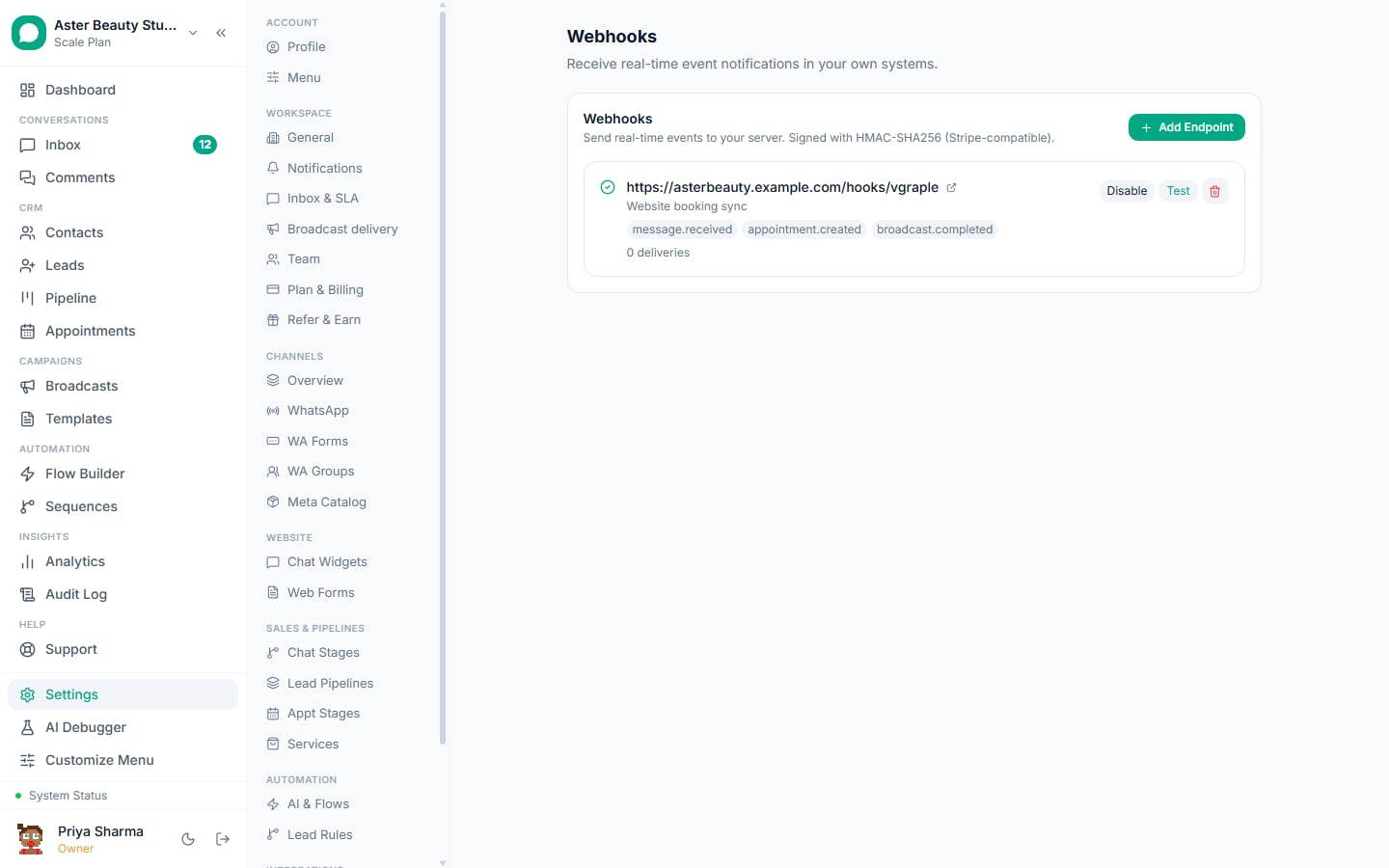

• You need an endpoint already created in Settings > Webhooks, with its whsec_... secret saved somewhere secure; it was shown to you exactly once at creation. See configuring webhooks if you have not set one up yet.
• Your receiving server must have access to the raw, unparsed request body, not a version already deserialised into an object, since re-serialising JSON rarely produces the exact same bytes as the original.
• No specific role or plan is required for this step; it happens entirely on your own server, outside VGraple CRM.

Steps

1. Locate your endpoint's secret. It was shown once in Settings > Webhooks right after you clicked Create Endpoint. If you saved it in your environment variables or a secrets manager as instructed at the time, retrieve it from there now.

2. Read the raw request body before any JSON parsing. In most frameworks this means registering your webhook route with raw-body access (Express's express.raw(), Flask's request.get_data(), or reading php://input directly) rather than a route that has already deserialised the body into an object.

3. Read the signature header. Prefer X-Webhook-Signature, formatted t=<unix seconds>,v1=<hex digest>: the digest is HMAC-SHA256 over the string <t>.<raw body> (the timestamp, a dot, then the exact body bytes), and t lets you refuse anything older than five minutes. X-Signature-256, formatted sha256=<hex digest> over the raw body alone, is still sent on every delivery; the samples below check the timestamped header and show the older one as well.

4. Compute your own HMAC-SHA256. Use your stored secret as the HMAC key. For X-Webhook-Signature the message is the timestamp from the header, a dot, then the exact raw bytes; for X-Signature-256 it is the raw bytes alone. See the code samples below for Node, Python and PHP.

5. Compare using a constant-time function, not == or ===. A timing-safe comparison avoids leaking information about how many leading bytes matched, which a plain string comparison can expose.

6. Reject anything that does not match. Return a 401 or 400 status and stop processing. Only proceed to parse and act on the payload once the signature check passes.

Node.js example

const crypto = require("crypto");

const TOLERANCE_SECONDS = 300; // five minutes, the same window Stripe uses

// X-Webhook-Signature: t=<unix seconds>,v1=<hex digest of HMAC(`${t}.${body}`)>
function verifyTimestampedSignature(rawBody, header, secret) {
  const parts = Object.fromEntries(header.split(",").map((kv) => kv.split("=")));
  const t = Number(parts.t);
  if (!Number.isInteger(t) || !parts.v1) return false;
  const expected = crypto.createHmac("sha256", secret).update(`${t}.`).update(rawBody).digest();
  const given = Buffer.from(parts.v1, "hex");
  if (given.length !== expected.length || !crypto.timingSafeEqual(given, expected)) return false;
  return Math.abs(Math.floor(Date.now() / 1000) - t) <= TOLERANCE_SECONDS;
}

// X-Signature-256: sha256=<hex digest of HMAC(body)>, the original header
function verifySignature(rawBody, signatureHeader, secret) {
  const expected = "sha256=" + crypto.createHmac("sha256", secret).update(rawBody).digest("hex");
  const a = Buffer.from(expected);
  const b = Buffer.from(signatureHeader);
  if (a.length !== b.length) return false;
  return crypto.timingSafeEqual(a, b);
}

// Express route, mounted with express.raw({ type: "application/json" })
// so req.body is a Buffer of the exact bytes VGraple CRM sent.
app.post("/webhooks/vgraple", (req, res) => {
  const signature = req.headers["x-webhook-signature"] || "";
  if (!verifyTimestampedSignature(req.body, signature, process.env.VGRAPLE_WEBHOOK_SECRET)) {
    return res.status(401).send("Invalid signature");
  }
  // Older receivers can keep checking req.headers["x-signature-256"] with verifySignature() instead.
  const event = JSON.parse(req.body.toString("utf8"));
  // event.type, event.data are now safe to act on
  res.status(200).send("ok");
});

Python example

import hashlib
import hmac
import time
from flask import Flask, request, abort

app = Flask(__name__)
WEBHOOK_SECRET = "whsec_your_secret_here"

TOLERANCE_SECONDS = 300  # five minutes

def verify_timestamped_signature(raw_body: bytes, header: str, secret: str) -> bool:
    # X-Webhook-Signature: t=<unix seconds>,v1=<hex digest of HMAC(f"{t}.{body}")>
    parts = dict(kv.split("=", 1) for kv in header.split(",") if "=" in kv)
    t, given = parts.get("t"), parts.get("v1")
    if not t or not t.isdigit() or not given:
        return False
    expected = hmac.new(secret.encode(), f"{t}.".encode() + raw_body, hashlib.sha256).hexdigest()
    if not hmac.compare_digest(expected, given):
        return False
    return abs(int(time.time()) - int(t)) <= TOLERANCE_SECONDS

def verify_signature(raw_body: bytes, signature_header: str, secret: str) -> bool:
    # X-Signature-256: sha256=<hex digest of HMAC(body)>, the original header
    expected = "sha256=" + hmac.new(secret.encode(), raw_body, hashlib.sha256).hexdigest()
    return hmac.compare_digest(expected, signature_header)

@app.route("/webhooks/vgraple", methods=["POST"])
def vgraple_webhook():
    raw_body = request.get_data()  # exact bytes, before Flask parses JSON
    signature = request.headers.get("X-Webhook-Signature", "")
    if not verify_timestamped_signature(raw_body, signature, WEBHOOK_SECRET):
        abort(401)
    event = request.get_json()
    # event["type"], event["data"] are now safe to act on
    return "", 200

PHP example

<?php
$secret = "whsec_your_secret_here";
$rawBody = file_get_contents("php://input"); // exact bytes, before json_decode

// X-Webhook-Signature: t=<unix seconds>,v1=<hex digest of HMAC("$t.$body")>
$header = $_SERVER["HTTP_X_WEBHOOK_SIGNATURE"] ?? "";
$parts = [];
foreach (explode(",", $header) as $kv) {
    [$k, $v] = array_pad(explode("=", $kv, 2), 2, "");
    $parts[$k] = $v;
}
$t = $parts["t"] ?? "";
$expected = hash_hmac("sha256", $t . "." . $rawBody, $secret);
$fresh = ctype_digit($t) && abs(time() - (int) $t) <= 300; // five minutes

if (!$fresh || !hash_equals($expected, $parts["v1"] ?? "")) {
    http_response_code(401);
    exit("Invalid signature");
}

// Older receivers: $_SERVER["HTTP_X_SIGNATURE_256"] is "sha256=" . hash_hmac("sha256", $rawBody, $secret)

$event = json_decode($rawBody, true);
// $event["type"], $event["data"] are now safe to act on
http_response_code(200);

What you will see

A valid delivery's recomputed hash matches the X-Signature-256 header exactly, byte for byte, once you compare the two sha256=... strings (or just their hex portions). A tampered or forged request produces a mismatch, and your endpoint should reject it before parsing or acting on anything inside it.

Settings and options

Troubleshooting

Once verification is working, the payload reference documents every event's exact fields, and configuring webhooks covers adding more endpoints or changing subscribed events.
